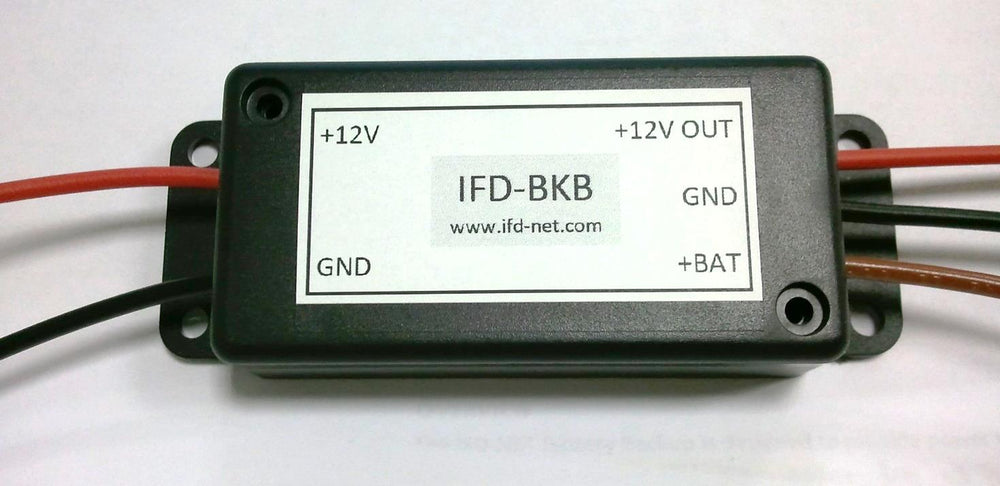

IFD-NET Battery Backup Module (IFD-BKB)
Designed specifically for Ultralight, Light Sport (LSA), and Experimental aircraft, the IFD-BKB provides uninterrupted emergency power to your IFD-NET and companion MAV avionics in the event of primary electrical bus or alternator failure. Featuring instantaneous automatic switching and built-in battery float charging, it guarantees your critical flight instruments stay online without interruption.
Key Advantages & Power Architecture
Engineered to keep critical navigation and primary flight displays alive when cockpit power fails:
Instant Power Transfer
Switches instantly to backup battery power the microsecond primary bus power drops. Eliminates instrument power cycling, blackouts, or in-flight AHRS gyro re-alignment.
Automatic Float Charging
As long as main alternator/aircraft power is available, the IFD-BKB automatically maintains the secondary battery at full charge, ensuring full reserve capacity on every flight.
Full 1-Hour Autonomy
When paired with an affordable 12 V / 2.3 Ah lead battery, the unit supplies an entire six-pack panel layout (six 80 mm IFD-NET units + avionic module) for roughly 60 minutes.
Dual Voltage Flexibility
Directly compatible with standard 12 V/14 V airframe buses, and operates on 24 V/28 V electrical systems simply by wiring two 12 V batteries in series (rated up to 30 V).
Wiring & Connection Configuration
The IFD-BKB comes pre-wired with 20 cm aeronautical-grade 1.5 mm² wiring. Connect into your cockpit electrical circuit as follows:
- +12V IN (Red Wire): Connects to the unregulated aircraft alternator/battery charging bus via a dedicated 5 A fuse or breaker.
- GND (Black Wires): Connect to the central airframe ground chassis and instrument ground bus.
- +12V OUT / +24V OUT (Red Wire): Feeds the positive power terminal of your IFD-NET / IFD-microNET instruments via your cockpit avionics master switch.
- +BAT (Brown Wire): Connects to the positive terminal of your auxiliary lead backup battery via an inline 5 A fuse.
Technical Specifications
| Module Dimensions (L × W × H) | 110 mm × 40 mm × 20 mm |
| Nominal Input Voltage | 12 V – 15 V DC (supports up to 30 V DC for 24 V/28 V systems) |
| Maximum Continuous Output Current | 2.0 Amperes |
| Operating Temperature Range | -20°C to +70°C |
| Integrated Wiring Specification | Aeronautical grade, 20 cm length, 1.5 mm² cross-section |
| Recommended Circuit Protection | 5 A fuse on Main +12V IN line • 5 A fuse on +BAT backup lead |
| Supported Battery Chemistry | Sealed Lead-Acid (SLA / AGM) batteries only (e.g. Yuasa 12V 2.3Ah) |
| Avionics Compatibility | IFD-NET EVO series, IFD-microNET series, and companion MAV instruments |
- Never connect a fully discharged battery: The IFD-BKB is a float maintainer, not a bench recovery charger. Always fully charge the secondary battery prior to installation.
- Connection order: Complete all panel wiring first, and leave the connection to the battery positive terminal (+BAT) as the final step to avoid short-circuit risks during assembly.
- Engine cranking: Isolate the avionics bus switch during engine start to protect instruments from starter-motor electrical spikes.
| Manufacturer / Brand | M.A.V Avionics |
|---|---|
| Part Number / SKU | BPK01 |
| Fitment Type | Aviation Standard Fitment |
