Eclipse NG
Flybox Eclipse NG (IFIS vs. PFD)

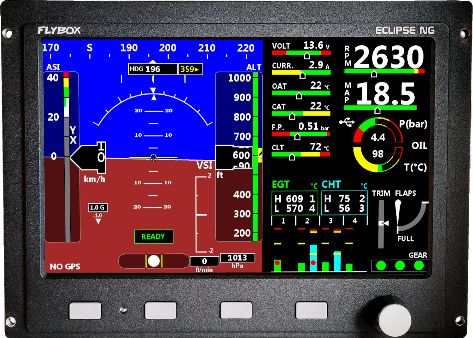

The Flybox Eclipse NG is an advanced wide-format avionics display system engineered for Ultralight, Light Sport (LSA), and Experimental aircraft. Designed to deliver glass-cockpit situational awareness, the Eclipse NG is available in two dedicated configurations: the IFIS (combining flight telemetry with split-screen engine monitoring on the right) and the PFD (a standalone unit dedicated entirely to full-screen primary flight instrumentation).
Choosing Your System: IFIS vs. PFD
While both instruments share the same rugged aluminium housing and sunlight-readable display, they serve distinct cockpit functions:
Eclipse NG IFIS (Integrated System)
The complete all-in-one flight and powerplant hub. The left half displays your primary flight instruments (attitude, speed tape, altitude drum, VSI, heading), while the right half of the screen is permanently dedicated to comprehensive engine monitoring (EIS).
- Full right-hand engine panel: RPM, MAP, Oil P/T, Fuel Flow, CHT/EGT, Trim, Flaps
- Three pneumatic ports: Pitot, Static, and Manifold Absolute Pressure (MAP)
- All three rear connectors wired (CON1, CON2, CON3) for complete sensor acquisition
- Ideal as a standalone master glass panel in single-screen cockpits
Eclipse NG PFD (Primary Flight Display)
A standalone, dedicated instrument built solely for primary flight information. Instead of dividing screen real estate with engine monitoring, the PFD presents a full-screen, high-focus flight display without secondary clutter.
- Dedicated full-screen attitude, airspeed, barometric altitude, VSI, and directional gyro
- Direct rear Pitot and Static pneumatic connections with internal AHRS sensors
- Clean installation without analogue engine sensor looms
- Perfect for dual-screen panels or cockpits utilizing separate engine instrumentation
Feature & Capability Matrix
| Capability / Parameter | Eclipse NG IFIS | Eclipse NG PFD |
|---|---|---|
| Primary Display Architecture | Split-Screen: PFD (Left) + EIS (Right) | Full-Screen Primary Flight Display |
| Engine Information System (EIS) | Included | Not Included |
| Pitot & Static Ports | Included | Included |
| Dedicated MAP Pneumatic Inlet | Included | Not Included |
| CON2 (37-Pin Fluids & Engine Senders) | Fully Connected | Not Used |
| CON3 (25-Pin CHT/EGT Thermocouples) | Up to 6x CHT & 6x EGT | Not Used |
| Autopilot Integration (CAN1) | Included | Included |
| Composite Video Inputs | 3x Inputs (CON1) | 3x Inputs (CON1) |
IFIS Split-Screen Engine Management Scope
The right-hand side of the Eclipse NG IFIS permanently organizes your complete engine telemetry into clear visual zones:
Power & Pressures
Continuous large numerical and arc readouts for Engine RPM, Manifold Absolute Pressure (MAP in inHg), Oil Pressure (bar or psi), and Fuel Pressure with customizable green, yellow, and red operating arcs.
All-Cylinder CHT & EGT
Vertical bar graph displaying up to 6x Cylinder Head Temperatures and 6x Exhaust Gas Temperatures simultaneously, with automatic peak temperature tracking and numerical readouts for the hottest and coldest cylinders.
Fuel Reserves & Flow
Monitors up to 3 individual fuel tank levels (Left, Main, Right) via capacitive or resistive floats, combined with dual fuel flow inputs for precision consumption, endurance, and range monitoring.
Airframe Controls & Status
Real-time on-screen indicators for elevator trim position, flap potentiometer setting, three gear-down status lamps, bus voltage, ammeter current, and an intelligent pre-takeoff engine readiness status monitor.
Technical Specifications
| Outer Bezel Dimensions | 188.50 mm Wide × 136.10 mm High |
| Chassis Depth | 45.30 mm (Body) / 99.10 mm (Total depth including rear D-Sub connectors) |
| Panel Cutout Dimensions | 170.00 mm Wide × 116.00 mm High (with 3.50 mm corner radii) |
| Panel Screw Pattern | 4x 4.00 mm holes (182.90 mm horizontal × 125.16 mm vertical spacing) |
| Operating Voltage & Current | 10 V – 30 V DC (approx. 0.5 A supply current) |
| Pneumatic Connections | IFIS: 3x Ports (Pitot, Static, MAP) • PFD: 2x Ports (Pitot, Static) |
| Sensor Supply Outputs | +5 V (300 mA) and switched +Vout (500 mA total capacity) |
| Digital Communication Busses | CAN1 (Avionics & Autopilot) + ECU CAN (Rotax 912iS/915iS) |
| Video & Audio Interfaces | 3x Composite Video inputs • Intercom Audio Line-Out |
| Alarm Annunciation | 2x Master Alarm Outputs (NPN open-collector, 500 mA max) |
| Manufacturer / Brand | Flybox Avionics |
|---|---|
| Part Number / SKU | 701002 |
| Fitment Type | Aviation Standard Fitment |
