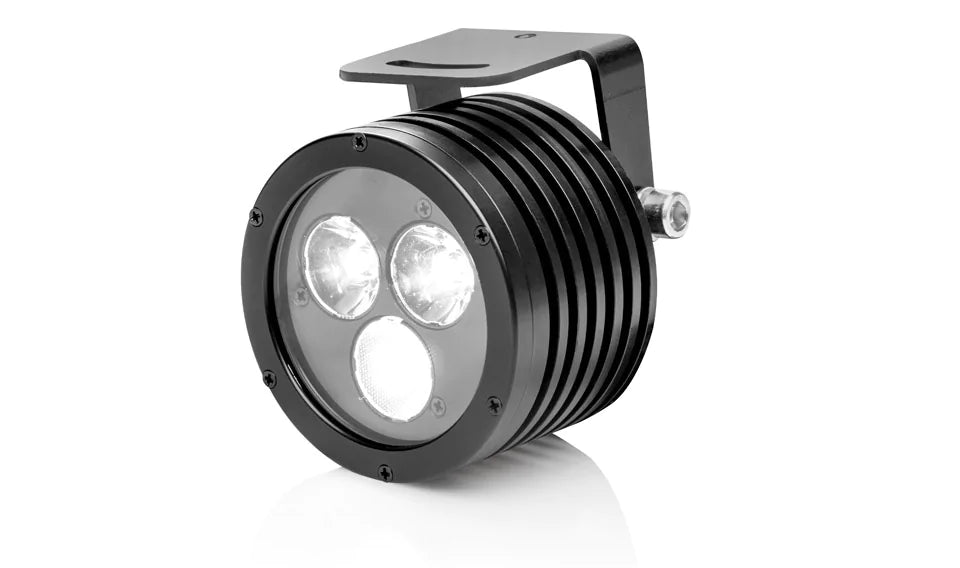

Follow Me
High-Power Runway & Terrain Landing Illumination
The Landing Light Follow Me covers the entire required lighting spectrum—delivering crystal-clear visibility of the runway, obstacles, and surrounding terrain during critical take-off and landing operations. Ultra-compact, highly efficient, and built to withstand the harshest flight environments.
Key Advantages
Multi Protection
Anodised aluminium housing sealed with UV-resistant epoxy resin. Impervious to water ingress, extreme vibration, and dust, with integrated reverse polarity protection.
CREE LED Brightness
Advanced reflector system coupled with high-output CREE LEDs delivers an exceptional 8,000 lumens, projecting a clean, intense beam far down the runway.
Self-Contained Unit
Features a built-in power converter, 6 mm Pixelglass lens array, and internal strobe driver—eliminating bulky remote modules and keeping installations straightforward.
Technical Specifications
| Operating Voltage | 11.8 V – 14.8 V DC (supports up to 27 V DC) |
| Current Draw | 2.8 A @ 13.5 V DC • 1.4 A @ 27 V DC |
| Input Power | 38 W |
| Luminosity Output | 8,000 lm |
| Light Angle Coverage | 12° narrow range (per lamp) / 30° wide range |
| Lens & Optics | 6 mm Pixelglass lens with reflection system |
| Dimensions & Weight | 71 mm × 61 mm (+ bracket) • 330 g |
| Operating Temperature Range | -20°C to +80°C |
| Encapsulation & Housing | Anodised aluminium, UV-resistant epoxy monolith |
| Internal Electronics | Built-in converter & internal strobe controller |
| Wiring Requirement | 1.0 mm² cable |
| Protections | Reverse polarity, water & vibration resistant |
| Warranty | 2 Years |
| Manufacturer / Brand | Aviolights |
|---|---|
| Part Number / SKU | AVI01 |
| Fitment Type | Aviation Standard Fitment |
Technical Inquiry for Follow Me
Confirm wiring loom compatibility, panel depths, or kit lead times with our engineering team.
