IFD-NET EFIS Base

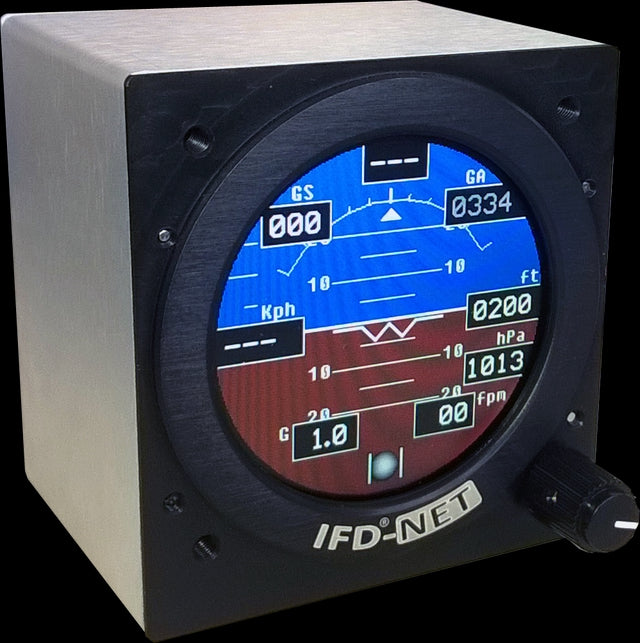

IFD-NET EFIS BASE (80 mm)
Designed specifically for Ultralight, Kit, and Experimental aircraft, the IFD-NET EFIS BASE delivers complete Primary Flight Display capability inside a standard 80 mm (3⅛″) panel hole. Built around internal solid-state AHRS sensors and pneumatic pressure transducers, it provides continuous attitude, speed, altitude, and coordination data in direct sunlight with low power consumption.
Selectable PFD Screen Density
Tailor your Primary Flight Display scanning layout directly through the onboard setup menu:
Full PFD (FUL)
Complete glass cockpit scan. Displays artificial horizon, indicated airspeed tape, barometric altitude, GPS altitude, vertical speed, turn coordinator, slip ball, reference pressure, and live G-meter.
Clear Mode (CLR)
De-clutters secondary telemetry during high-workload operations by hiding the G-meter, turn coordinator bar, ground speed, and vertical speed for a cleaner, high-focus scan.
Attitude Backup (AH)
A pure artificial horizon format presenting only the attitude bank indicator, compass heading, and the coordination slip ball—ideal as an emergency backup instrument.
Primary Telemetry & G-Meter
- High-Speed AHRS: Continuous sampling resolves pitch and roll through acrobatics and hard turbulence.
- Configurable V-Speeds: Set Vs0, Vs1, Vfe, Vno, and Vne to draw coloured safety ribbons on the IAS tape.
- Peak G Recording: Measures instantaneous G-load with positive and negative peak retention and quick pilot zero-reset.
Ergonomics & 80 mm Fit
- Rotary Push-Knob: Rotate to adjust QNH/QFE pressure and menu values; push to confirm selections.
- Standard 80 mm Cutout: Direct installation into 3⅛″ panel holes with four 4MA mounting screws.
- In-Panel Calibration: Pitch, roll tilt, and barometric offset trimming zero out panel mounting misalignment.
Technical Specifications (80 mm Model)
| Panel Mounting Standard | Standard 80 mm (3⅛″ aeronautical cutout) |
| Dimensions (W × H × D) | 83 mm × 87 mm × 67 mm |
| Total Weight | Approx. 500 g |
| Cockpit Controls | Aluminium rotary knob with push-to-confirm action |
| Display Luminosity | Sunlight-visible colour screen up to 1,000 cd/m² |
| Operating Voltage Range | 10 V – 30 V DC (with internal filter & peak transient protection) |
| Power Consumption | Down to 2.3 W (approx. 200 mA @ 12 V DC) |
| Operating Temperature Range | -20°C to +80°C (up to 90% RH non-condensing) |
| Pneumatic Ports | 2× 1/8″ NPT female ports (Pitot & Static) |
| GPS Antenna Connection | SMA female connector (supports external passive antennas) |
| Electrical Connection | Standard 9-pin Sub-D female connector (power & BUS) |
| Units of Measure | Fully adjustable (Altitude in m/ft, Airspeed in kts/km/h, VSI in m/s or ft/min, Pressure in hPa/inHg) |
| Included Accessories | 4× 4MA × 10 mm black panel screws |
| Manufacturer / Brand | M.A.V Avionics |
|---|---|
| Part Number / SKU | MFD05 |
| Fitment Type | Aviation Standard Fitment |
