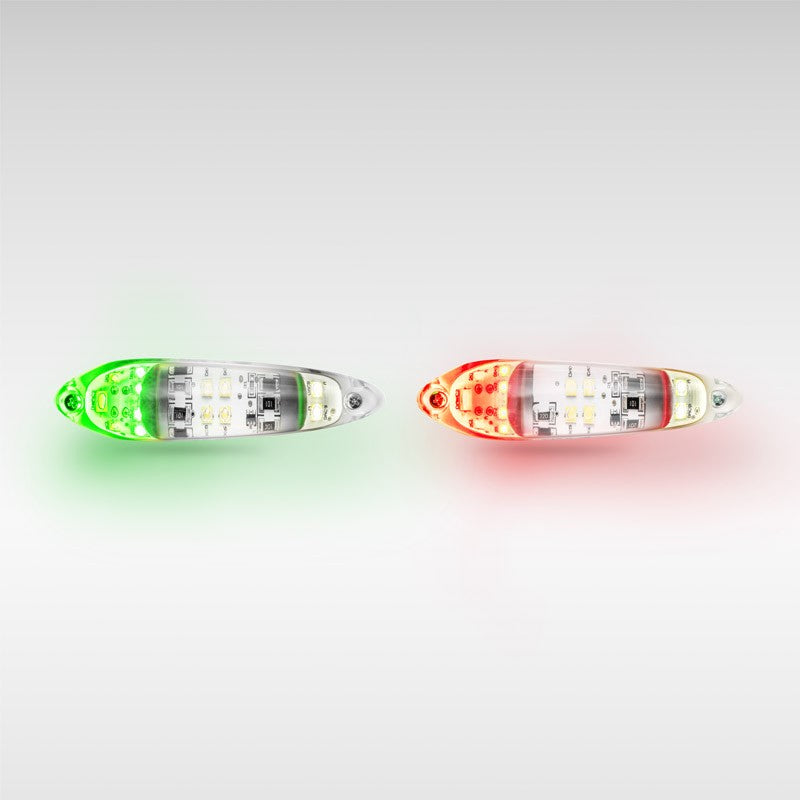

Long Slim 360
All-In-One Navigation, Rear Position & Synchronised Strobe System
Designed specifically for LSA, Ultralight, Kit, and Experimental aircraft, the Long Slim 360 is a complete lighting solution covering the entire required light spectrum. Integrating port/starboard navigation, rear white position lights, and high-intensity synchronised strobes into a razor-thin profile, it ensures complete 360-degree visibility without adding drag or structural weight.
Key Advantages
Integrated Strobe Controller
The synchronised strobe controller is built directly into each lamp capsule. Installation is faster, wiring is simplified, and you do not need dedicated fuselage space for external power drivers.
Multi Protection
Solid UV-resistant epoxy monolith encapsulation ensures complete resistance to water and airframe vibration. Dust cannot enter the unit, and onboard electronics are protected against accidental reverse polarity.
High Brightness CREE Output
State-of-the-art optics paired with a proprietary reflection system and genuine CREE LEDs deliver beam performance and visibility far exceeding regulatory minimum requirements.
Model Comparison
Compare the key differences between our standard and 360-degree models below:
| Capability | Navigator Ultra & Long Slim | Navigator Ultra 360 & Long Slim 360 |
|---|---|---|
| Navigation Light (Red / Green) | ✓ | ✓ |
| Rear Position Light (White) | — | ✓ |
| Synchronised Strobe (White) | ✓ | ✓ |
| Operating Voltage | 12 V – 15 V | 12 V – 15 V |
| Integrated Synchronisation | ✓ | ✓ |
Technical Specifications
| Lighting Functions | Navigation (Red/Green) + Rear Position (White) + Synchronised Strobe (White) |
| Operating Voltage | 12 V – 15 V DC |
| Weight (Set of 2 Lamps) | 115 g |
| Operating Temperature Range | -35°C to +60°C |
| Current Draw – Navigation | 0.4 A (pair) |
| Current Draw – Strobe (Peak) | 2.7 A per lamp (in peak) |
| Input Power – Navigation | 5.3 W (pair) |
| Input Power – Strobe (Peak) | 40 W per lamp (in peak) |
| Navigation Light Angle | 110° |
| Luminosity Output | 450 lm (nav/lamp) • 8,000 lm (strobe pair) |
| Encapsulation & Sealing | Monolith of UV-resistant epoxy resin (dust, water & vibration proof) |
| Strobe Control Unit | Built inside lamp capsule (synchronised) |
| Circuit Protection | Reverse polarity protected |
| Manufacturer Warranty | 2 Years |
| Manufacturer / Brand | Aviolights |
|---|---|
| Part Number / SKU | AVI10 |
| Fitment Type | Aviation Standard Fitment |
Technical Inquiry for Long Slim 360
Confirm wiring loom compatibility, panel depths, or kit lead times with our engineering team.
