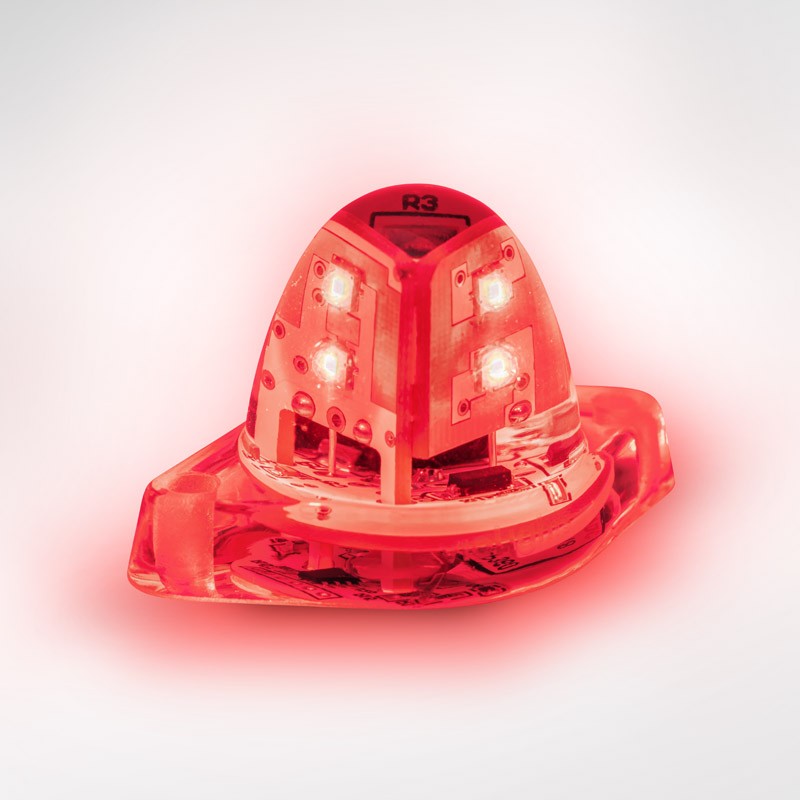

Red Eye Beacon
Synchronised Omnidirectional Anti-Collision Strobe System
The Red Eye is a dedicated aviation beacon and recognition light designed specifically for LSA, Ultralight, Kit, and Experimental aircraft. Delivering an intense 360-degree flashing red beacon, it guarantees outstanding anti-collision conspicuity in the circuit and on the ground. Fully equipped with master synchronisation to link flawlessly with companion AvioLights systems.
Key Advantages
Integrated Flash Controller
The internal flash driver is built directly into the lamp capsule. Installation is quick and clean—no need to route high-voltage cabling through bulkheads or find mounting space for external power packs.
Multi Protection
Monolithic encapsulation in solid UV-resistant epoxy resin renders the lamp completely impervious to moisture, pressure washing, vibration, and dust, with integrated reverse polarity protection.
High Brightness CREE Output
Custom internal reflector geometry paired with high-efficiency CREE LEDs produces an intense 2,000-lumen omnidirectional flash burst that commands attention in hazy or direct sunlight conditions.
Technical Specifications (12 V – 15 V)
| Beacon Light Colour | Aviation Red (Flashing) |
| Light Angle Coverage | 360° Omnidirectional |
| Flash Frequency | 120 flashes / minute |
| Luminosity Output | 2,000 lm |
| Operating Voltage Range | 11.8 V – 14.8 V DC |
| Current Draw (Peak) | 3.4 A in peak |
| Input Power (Peak) | 40 W in peak |
| Total Weight | 50 g |
| Operating Temperature Range | -35°C to +60°C |
| Encapsulation & Sealing | Monolith of UV-resistant epoxy resin (dust, water & vibration proof) |
| Strobe Control Unit | Built inside lamp capsule |
| Strobe Synchronisation | Yes (interconnects with other AvioLights systems) |
| Circuit Protection | Reverse polarity protected |
| Manufacturer Warranty | 2 Years |
| Manufacturer / Brand | Aviolights |
|---|---|
| Part Number / SKU | AVI04 |
| Fitment Type | Aviation Standard Fitment |
Technical Inquiry for Red Eye Beacon
Confirm wiring loom compatibility, panel depths, or kit lead times with our engineering team.
