Rotax 912/912is/914/915is wiring loom for Vigilus EMS
Flybox Vigilus Engine Wiring Looms

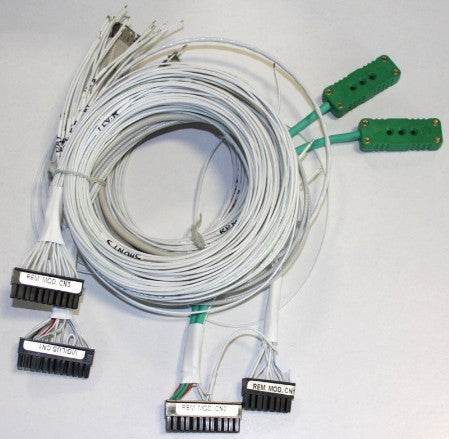

Eliminate wiring errors, ground-loop interference, and dozens of fabrication hours with factory pre-assembled engine harnesses for the Flybox Vigilus Engine Information System. Built using aviation-grade high-temperature cabling and noise-screened twisted signal lines, these harnesses provide direct plug-and-play reliability between your engine compartment and the firewall-mounted Vigilus Remote Module.
Select Your Engine Configuration
Select the correct harness variant above to match your aircraft engine model:
| Harness Variant | Engine Application | Primary Capabilities |
|---|---|---|
| Rotax 912 / 914 Loom | Rotax 912 UL / ULS / ULSFR & 914 Turbo | Pre-wired for 4× EGT, 2× CHT (Cyl 2 & 3), RPM pick-up, Oil P, Oil T, Fuel P, Fuel Flow, CAT, OAT, and 3× Fuel Levels. |
| Rotax 912iS / 915iS Loom | Rotax 912iS, 912iSc Sport & 915iS / 916iS | Direct dual CAN-bus to ECU Lane A & B for RPM, Water Temp, Manifold Temp, Throttle Position, and digital fuel flow, plus airframe fuel/electrical leads. |
| Universal Custom Loom | Jabiru, Continental, Lycoming, EPA Power, custom builds | Pre-pinned locking connectors at the Remote Module with extended unterminated flying leads for custom routing and length trimming. |
Rotax 912 / 914 Harness
Matches the default factory software profile of the Vigilus. CHT channels map directly to Cylinders 2 & 3, and shielded pairs isolate the sensitive RPM trigger line from ignition pulse noise.
- 4× K-type EGT branches
- 2× Factory CHT sensor connectors
- Pre-wired for Rotax 956413 Oil Pressure & Oil Temp
- Fuel pressure, flow, and airbox temperature leads
Rotax 912iS / 915iS Harness
Connects directly into the Rotax CAN bus to stream digital engine telemetry. Enables the Vigilus [A B] ECU status monitor and captures exact injection-calculated fuel consumption without mechanical inline flow meters.
- Dual ECU Lane A & Lane B CAN lines
- Streams WT, MT, RPM, and Throttle Position
- Pre-wired high-pressure fuel rail sensor branch
- 3× Tank level senders & ammeter current leads
Universal Custom Harness
The preferred choice for non-Rotax installations or modified engine bays. Provides full-length aviation-grade wire runs pre-pinned into the Vigilus Remote Module connectors, leaving the engine ends ready for bespoke termination.
- Full complement of sensor and power channels
- Extended wire lengths for custom routing paths
- Guarantees factory pinout at the remote module
- Ideal for Lycoming, Continental, or Jabiru engines
Aviation-Grade Manufacturing Standards
- Flame-Retardant Wire Insulation: Resistant to engine bay fuels, oils, solvents, and heat cycles (-20°C to +105°C continuous).
- Complete Screening: Critical signal lines (RPM, CAN-Bus, and low-voltage sensor lines) are wrapped in braided screening with ground drains to ensure clean readings.
- Clear Identification: Every single wire breakout is colour-coded and identified with printed heat-shrink tubing for straightforward installation and maintenance.
Technical Specifications
| Avionics Compatibility | Flybox Vigilus Remote Engine Module (all versions) |
| Available Engine Variants | Rotax 912/914 • Rotax 912iS/915iS • Universal Custom |
| Conductor Quality | Aviation-grade, high-temperature, flame-retardant specification |
| Operating Temperature Rating | -20°C to +105°C continuous engine bay rating |
| Noise Shielding | Twisted shielded pairs with drain wires for CAN-bus, RPM, and sensors |
| Remote Module Connection | Pre-pinned multi-pin locking connectors matching Vigilus module receptacles |
| Manufacturer / Brand | Flybox Avionics |
|---|---|
| Part Number / SKU | 652010 |
| Fitment Type | Aviation Standard Fitment |
