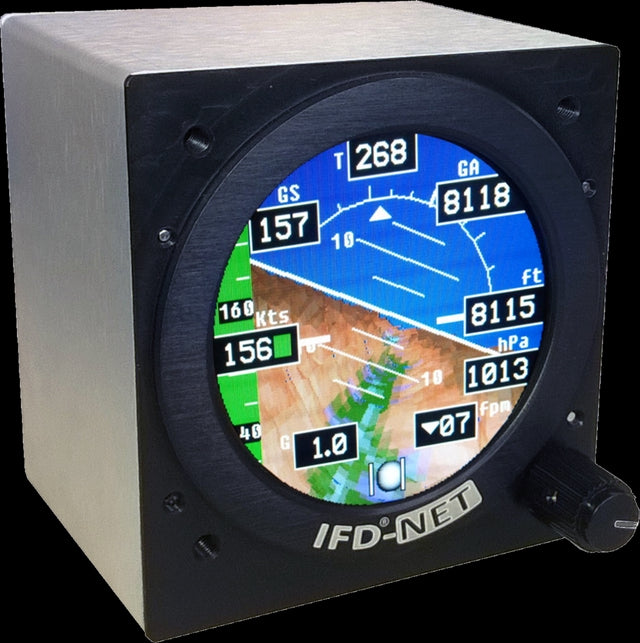

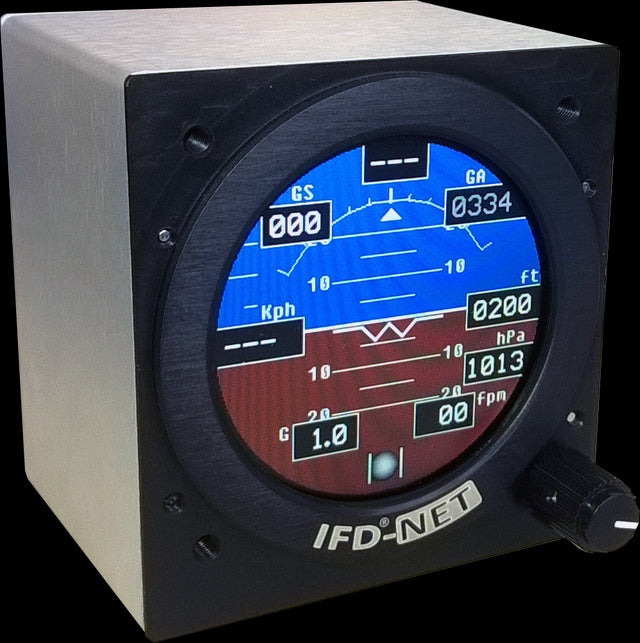

The IFD-NET Evo EFIS Plus is the most advanced flight instrument in the Evo 80mm range. It is a standalone "Master" unit that consolidates a full glass cockpit suite into a single standard aviation hole.
While the Base model provides essential flight data, the Plus version unlocks high-end features typically found in larger integrated flight decks, specifically focusing on navigation and 3D situational awareness.
Key "Plus" Features
The software on the Plus model allows you to toggle between up to six different screens using the rotary knob:
Synthetic Vision (3D): Provides a 3D digital terrain model, showing mountains, lakes, and cities. This is a massive safety benefit for flying in the UK's more challenging terrain like the Lake District or the Scottish Highlands.

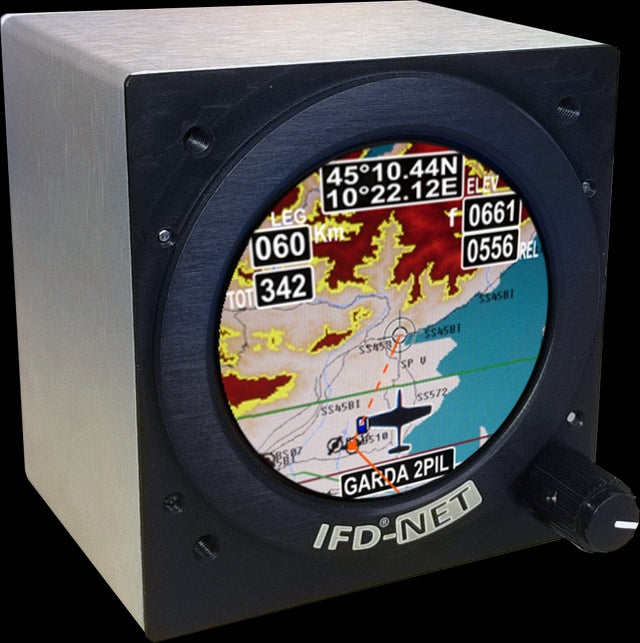

Moving Map: A full-colour geographical map showing airspaces, radio aids, and VFR reporting points.
TAWS (Terrain Awareness): Visual and aural alerts for potential terrain conflicts.
POI Database: An internal database of over 10,000 Points of Interest (airports and waypoints) with a "Nearest" function for emergencies.

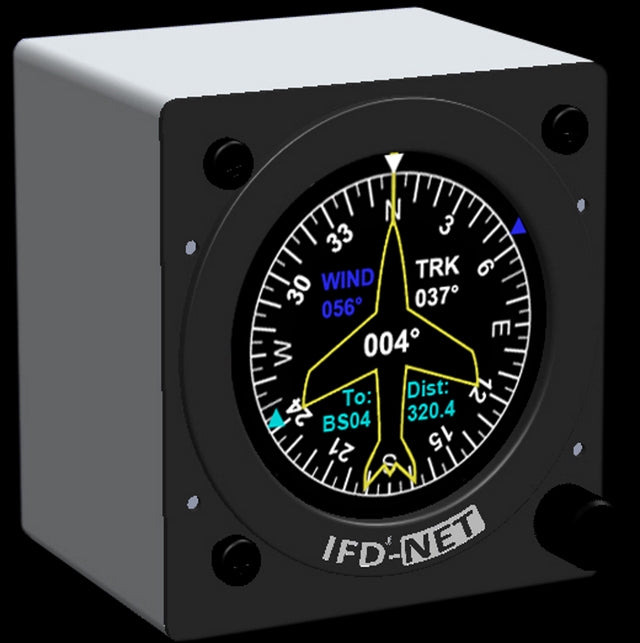

Navigation Pages: Includes a dedicated HSI (Horizontal Situation Indicator) and a Gyro Compass page.
Product Details
IFD-NET Evo EFIS Plus is the flagship 80mm instrument for UK permit-to-fly and microlight aircraft. It features an ultra-bright 1200+ nit screen and a minimalist bezel to maximise the display area.
Installation: Standard 80mm (3.125") hole.
Sensors: Internal AHRS, Pitot-Static, and high-sensitivity GPS.
Connectivity: Features a Fly Bus (RS485) to drive "Slave" units and NMEA RS232 output.
Interface: Dual-concentric rotary knob with a push-switch for easy use in turbulence.
UK Pilot Information
Regulation: These are non-certified instruments, making them ideal for LAA and BMAA aircraft.
Upgrade Path: Because the hardware is identical, you can often buy a Base unit now and pay for a software unlock code later to turn it into a Plus if your needs change.
