The Aviolights Navigator series is the standard-voltage (12V) range of wingtip LED lights for the UK microlight and experimental market. Unlike the "Sky Nav" models, which are built for 24V systems, the Navigator units are designed for the 11.8V – 14.8V range typical of Rotax-powered aircraft and other 12V airframes.
The primary appeal of the Navigator range is that the strobe controller is built directly into the lamp capsule. This means you don't need to find space behind the panel or in the wings for a bulky external power box; you simply run power, ground, and a sync wire directly to the wingtip.
Key Product Details

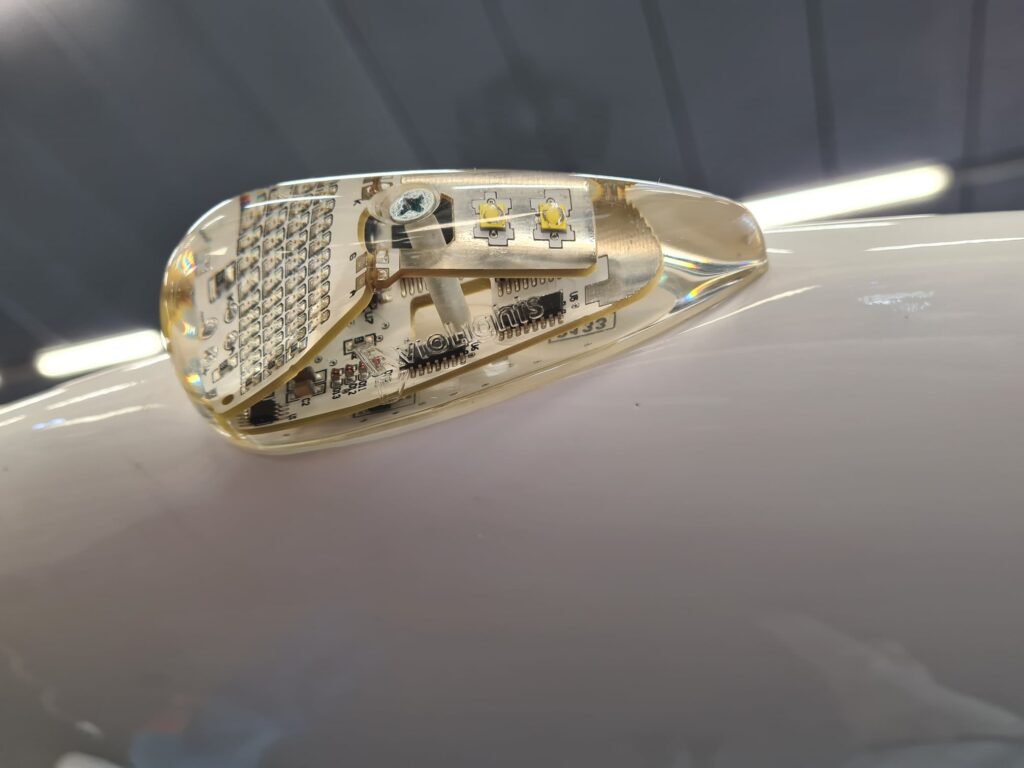

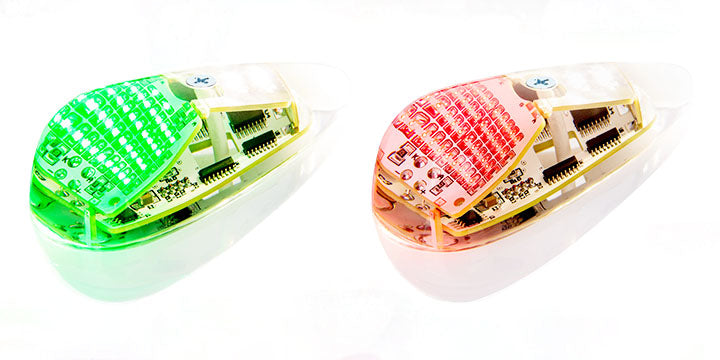

Aviolights Navigator Ultra 360 is the flagship 12V model. It is a true "all-in-one" wingtip solution because it includes the rear-facing white position light, completing the 360-degree light spectrum required for night flight or high-conspicuity day flight without needing a tail lamp.
Integrated Controller: No external "black box" required; electronics are inside the UV-resistant resin.
Brightness: 450 lumens for Nav lights and 2000 lumens for the strobe.
Durability: Monolith encapsulation makes it completely waterproof and vibration-proof.
Technical Summary for Installation
Dimensions: 95mm x 40mm x 27mm.
Weight: Only 170g for the pair.
Current Draw: 0.5A for Navigation and 3.2A peak for the Strobe.
Wiring: 4 wires—Red (+Nav), White (+Strobe), Black (Ground), and Orange (Synchro).
Recommendation
Choose the Navigator Ultra 360 if you want a clean wingtip that handles all your lighting needs (Nav, Strobe, and Position) in one go.
Choose the Navigator Ultra if you already have a dedicated tail light and just need wingtip Navs and Strobes.
Choose the standard Navigator if you only fly in daytime and don't require anti-collision strobes.
